Thermal Management is of prime importance in the application and use of Panel Mount Solid State Relays due to their internal power dissipation of approximately 1 watt/amp of switched load current.

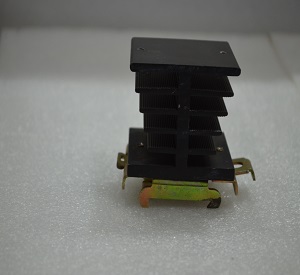

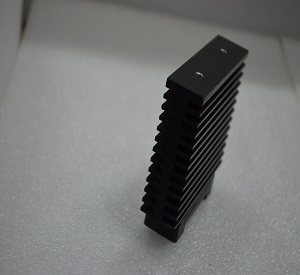

Crydom/SAKET heat sinks, designed with “state of the art” thermal design software, offers optimized thermal performance, size and cost for a variety of single, dual and three phase Solid State Relay applications.

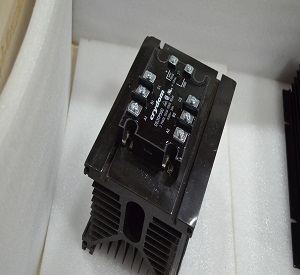

Designed to accept industry standard SSRs, the heat sinks with ratings from 5 °C per watt to 0.5 °C per watt which are suitable for combined loads from 10 amps to 150 amps. With models accepting one, two or three SSRs, the heat sinks can be either panel mounted or DIN rail mounted when combined with optional DIN rail mounting bracket kits.

SAKET also offers a variety of accessories which make it easier for the user to select, configure and install SSRs and heat sinks for your application such as,
